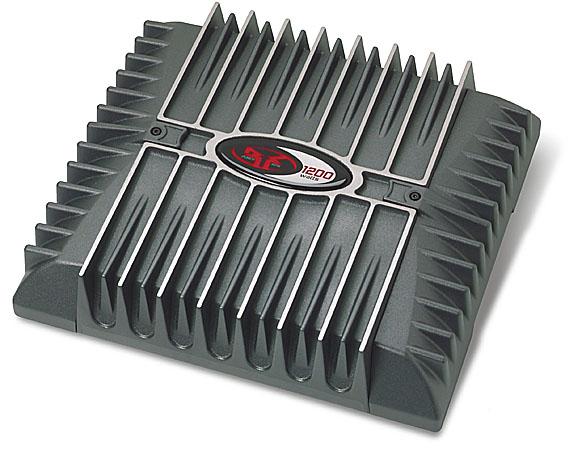

PUNCH 401S Amplifier

Does Your Ride Have Platinum In It? EVERY connection terminal on this amp (power, ground, RCA, speaker) is Platinum Plated to resist signal degradation caused by corrosion. Heat generated by the amplifier's circuitry is dissipated by a cast aluminum heatsink. The inherent advantage of casting provides a 30% improvement of cooling over conventional extrusion heatsink designs. The heavy duty, platinum-plated speaker terminal block connectors will accept wire sizes from 8 AWG to 18 AWG.

RF Punch Bass helps correct for acoustical deficiencies in the listening environment by helping produce full range sound without adding excessive boost. The Punch Bass control is a narrow band adjustment at 45Hz variable from 0dB to + 18dB. Connection is made with a cable using RJ-45 and is installed under the dash for remote control access.

Every RF amp is tested before it is sold to make sure it meets or exceeds the stated specifications. That means that you are gonna get more than you paid for. Every amp comes with a PUNCH Verification Certificate to inform the owner exactly what their amp is capable of.

PUNCH Verification Certificate
test B+ voltage: 14.316 VDD
Measured Continous RMS Power* 432 Watts
Frequency Response (20Hz - 20kHz, +/- 0,5 dB): Passed
Signal-to-Noise (>95dB AW): Passed
Efficiency: 59.563%
Quiet Turn-On/Turn-Off (Turn on delay 1-5 sec): Passed
Ground Loop Noise: TOPAZ Passed
Protection Circutitry: Passed
Max Power** 1200 Watts

General Specs
Channels 2   Protection Yes
Bridgeable Yes Heatsink Type -Cast
Per channel power 100 W X 2 @ 4 Ohms RMS
200 W X 2 @ 2 Ohms RMS
400 W X 1 @ 4 Ohms Bridged RMS
Signal input Low level - Quantity - 1
Type - RCA(pr)signal level
Voltage -100mV - 6 volts

High Level - Quantity - 1
Type - Plug(multi-pin)
Voltage -.5 - 11 volts
Total power 1200 Watts Peak/Max
200 Watts RMS
Frequency response 20 to 20k Hz +/- .5 dB
Crossover HP 50-250Hz 12dB per Octave
LP 50-250Hz 12dB per Octave
Display Power - Quantity 1
Position - Top mounted
Type - LED
Tone controls Bass Control
0 to 18 dB @ 45 Hz
Power input Connector - Block
Wire gauge - 8
Remote control Type - Wired (included)
Controls - Bass
Speaker output Block
    Dimensions 2.38 X 9.85 X 11.07 (inches)



*Actual Total Power (all channels driven to full power at 2 ohms)
**RF amplifier max power is for comparison withother brands based on today's contemporary amplifier ratings. The only reconized industry standard for rating and comparing amplifier output performance is continous RMS power. Every Rockford Fosgate ampilifer is hand-tested before it goes into the box, and includes a Punch Verification Certificate that states its actual measured continuous RMS power.
